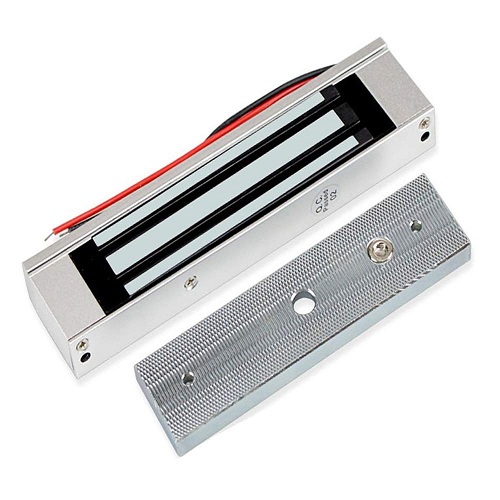

magnetic door lock 180kg
Magnetic door lock 180kg use an electromagnetic force to stop doors from opening, so they are ideal for security. Mag locks, such as the Deedlock mag locks are made up of an electromagnet and an armature plate. The plate is attached to the door, and the magnetic to the door frame.
- Working Voltage: DC12V
- Model Name: magnetic locks 180kg
- Zl bracket 1500
SKU: 180kgmaglock
Nationwide
Delivery
Cash / M-Pesa
on Delivery
1 Year
Warranty
Expert Support
Mon-Sat
Magnetic door lock 180kg is a fail- safe access control device using an electromagnet and metal plate for strong holding power (180kg/350 lbs) on doors, featuring a high-strength aluminum alloy body, DC12V power, built-in surge protection, and suitability for wood, glass, or metal doors, commonly used indoors/outdoors with access control systems.
Magnetic door lock 180kg Key Features:
- Holding Force: 180kg (350 lbs), locking the door via magnetic attraction.
- Mechanism: Consists of an electromagnet (on frame) and an armature plate (on door).
- Operation (Fail – Safe): Locks when powered (NC mode), unlocks when power is cut, making it safe for emergencies.
- Material: High-strength aluminum alloy housing, durable for various environments.
- Voltage: Typically DC12V.
- Protection: Built-in MOV for reverse current protection (voltage spike)
- Application: Works with wooden, glass, metal, and fireproof doors, often with ZL brackets for framed glass.
- Waterproof Options: Some models feature sealed circuit boards for outdoor use.
How it Works:
When activated by power, the electromagnet attracts the armature plate, creating a strong bond that keeps the door securely shut; when power is removed, the magnetic force releases, allowing the door to open.
