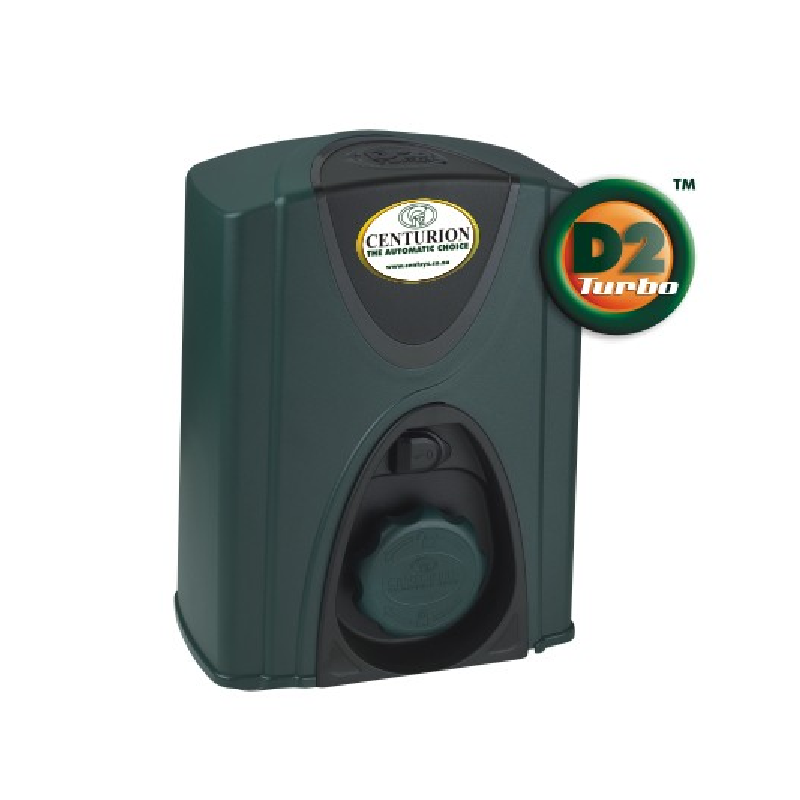

centurion d2 gate motor
Centurion d2 gate motor key features & benefits
-
High-Speed Operation:
The D2 Turbo uses advanced 12V DC motor technology to deliver high speeds, allowing gates to open and close in seconds for improved security and convenience. -
Low-Voltage & Solar Power:
It’s ideal for sites without mains power at the gate, allowing for installation with a low-voltage step-down transformer or a solar power supply. -
Reliable Performance:
With a capacity for gates up to 250kg and a peak push force of 9kgf, it provides robust and reliable operation. -
Easy Installation & Setup:
The motor’s design simplifies the installation process, reducing labor and costs. -
Battery Backup:
A reliable battery backup ensures continued operation during power outages, maintaining security. -
Safety Features:
- Adaptive Collision Sensing: Prevents damage and ensures user safety by detecting obstructions in the gate’s path.
- Adjustable Auto-Close: Can be set to automatically close the gate after a specific period.
- Integrated Smart Features: Includes an onboard multichannel receiver for integrating remote controls and keypads.
- Durable Construction: Built with durable materials and weather-resistant components to enhance its longevity.
- Modular Design: Modular components and a lockable manual override allow for easy maintenance and service.
Applications The Centurion D2 Turbo is a versatile and efficient solution for automating sliding gates in residential and light-commercial applications. Its compact design, robust performance, advanced safety, and smart features make it a suitable choice for enhancing security and convenience in various settings.
Nationwide
Delivery
Cash / M-Pesa
on Delivery
1 Year
Warranty
Expert Support
Mon-Sat
Centurion d2 gate motor is a robust and high-speed 12V DC motor for domestic sliding gates, supporting up to 250kg and offering fast operation. It is designed for easy installation, even in low-voltage or solar-powered applications, and features battery backup, adaptive collision sensing, an onboard multichannel receiver for remote control, and a modular design for simple maintenance. Safety is a priority, with features like adaptive collision sensing and adjustable auto-close settings
Centurion d2 gate motor Technical Specifications
According to information from sources like Affrosonicsystems.com and the Centurion Systems website, the technical data for the D2 Turbo is as follows: Specification
Description
Max. Gate Mass
250 kg
Max. Gate Length
20 m
Motor Voltage
12V DC
Gate Speed
22 – 26 m/min (367 – 433 mm/sec) Operator Push Force (rated)
8 kgf
Input Voltage (AC)
90V– 240V AC ±10%, 50Hz
Degree of Protection
IP54
Design Life
30,000 cycles (approx. 10 years at 10 cycles/day) The Centurion D2 Turbo is lauded by retailers as a reliable, fast, and user-friendly solution that combines performance, safety, and convenience for residential security needs
