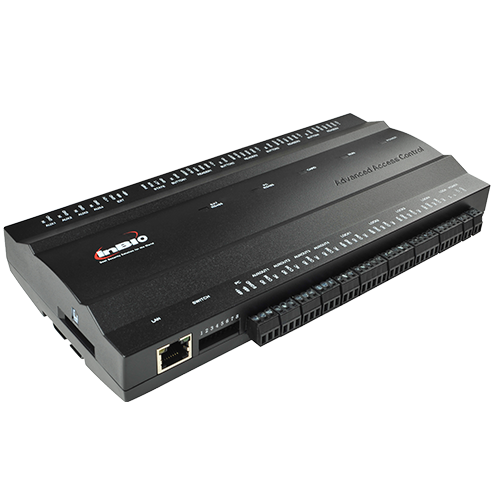

inbio 460 4 door controller

inbio 460 4 door controller carries is a high-performance, IP-based biometric 4-door access control panel designed for security-sensitive applications. It supports up to 3,000 fingerprint templates, 30,000 card users, and 100,000 events, featuring on-panel fingerprint matching via RS-485 readers (e.g., FR series) and Wiegand compatibility. It supports TCP/IP and RS485 communication, with encrypted data transfer.
n

inbio 460 4 door controller Key Features and Specifications:

n

n
• Door Capacity: Controls up to 4 doors.

n

• Reader Support: 12 readers total (8x RS-485 FR series, 4x Wiegand).

n

• Inputs/Outputs: 12 inputs (4 exit buttons, 4 door status, 4 AUX) and 8 outputs (4-Form C relay for lock, 4-Form C for Aux).

n

• Capacity: 3,000 fingerprints, 30,000 cards, and 100,000 log events.

n

• Communication:  TCP/IP and RS-485.

n

• Security: Features built-in anti-passback, first-card opening, multi-card opening, and duress password support.

n

• Real-time Management: on- board SD card backup for data protection during power failures.

n

• Processor/Memory: 32-bit 1.2GHz CPU (Pro model) or 400MHz, with 128MB RAM and 256MB Flash memory.

n

n

nFree SDK is available for integrators and OEM’s to integrate the inBio controllers with their or existing security or personnel management applications. Upon request, ZK can also customize inBio fi­rmware to meet any custom requirements.
