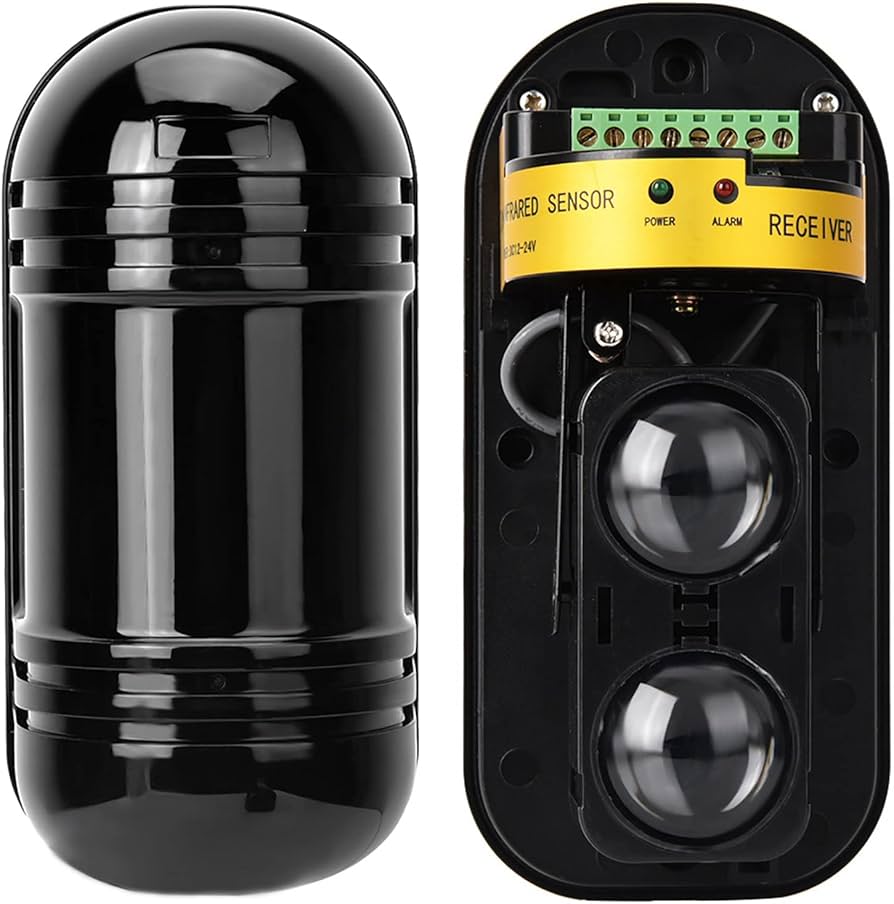

ABT 200 Beam Sensor

ABT 200 Beam Sensor is a professional-grade, dual-beam active infrared perimeter detector designed for long-range security. It creates an invisible barrier between a transmitter and receiver, triggering an alarm only when both beams are interrupted simultaneously—a feature that significantly reduces false alarms from birds or falling leaves.
n

n

ABT 200 Beam Sensor Key Features and Specifications:

n

n
1. Detection Principle: Two active, synchronized infrared beams (dual beam) require simultaneous interruption for an alarm, reducing false triggers from birds or falling leaves.

n

2. Range: Up to 200 meters (656 ft) outdoors; up to 300-400 meters indoors.

n

n3. Frequency Channels: Selectable frequency channels allow for stacking (vertical) or long-distance applications without interference.
n
n4. Alignment: Features an optical viewfinder and LED signal strength indicators for easy, fast, and precise alignment.
n
n5. Environmental Protection: Weatherproof design (often IP55/IP65 rated), featuring anti-glare, anti-frost, and anti-tamper mechanisms to handle snow, rain, and direct sunlight.
n
n6. Adjustment: -/+ 90 degrees horizontal and -/+10 degrees  vertical optical lens adjustment.
n
n7. Power: Usually operates on 13.8 to 24VDC or 11 to 18VAC
n
n
n

Beam Sensors Typical Applications:

n–Perimeter security for warehouses and factories.
n
n-Fence line monitoring for residential properties.
n
n-Security for schools, hospitals, and parking lots
