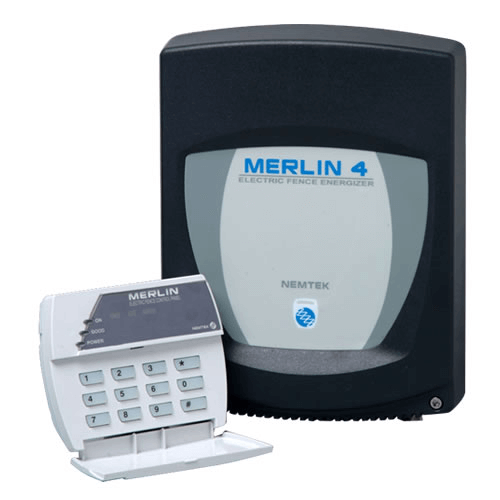

merlin 4i electric fence energizer
merlin 4i electric fence energizer with keypad Features:
n• 3.7 Joule output energy (single zone)
n• Robust and flexible design for home and commercial security
n• Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
n• Connectable to armed response radio or GSM module
n• Lightning and power surge protection
n
nAvailable at www.affrosonicsystems.com
SKU: merlin4i
Nationwide
Delivery
Cash / M-Pesa
on Delivery
1 Year
Warranty
Expert Support
Mon-Sat
merlin 4i electric fence energizer with keypad 4 joule the energizer can be installed near the fence and the keypad can be located where it is most convenient for the user. This allows the user to control the energizer remotely, with up to four keypads (EE-MKP).
n
Features :
n• 3.7 Joule output energy (single zone)
n• Robust and flexible design for home and commercial security
n• Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
n• Connectable to armed response radio or GSM module
n• Lightning and power surge protection
n• Intelligent power saving to extend battery life
n• Powered by 230V mains and includes built-in battery for back-up power
n• Built-in gate alarm input to monitor if the gate is open or closed
n• Gate chime available to alert that the gate has been opened or closed
n• The fence voltage outputs can be adjusted using the keypad
n• The siren and gate outputs can be bypassed using the keypad
n
n
n
merlin 4i electric fence energizer Specifications
nEnclosure size: L285 x W212 x D120
nWeight excluding battery (7AH): 3.1kg
nWeight including battery (7AH): 5.3kg
nIP rating: IPx4
nOperating temperatures: -10°C to 50°C
nOperating humidity: < 80% non-condensing
nElectrical supply voltage: 240V
nTypical power consumption (normal operating conditions): 18VA
nStandby time (fully charged battery): 24hrs
nEnergy output 500 Ohms load: 3.7 Joule
n
n
n
n
-
n
- Robust design: Built for both home and commercial security applications.
- Remote control: Comes with a keypad that allows for remote control and programming from a convenient location.
- System integration: Can be connected to an armed response radio or a GSM module for external monitoring.
- Protection: Includes built-in lightning and power surge protection.
- Intelligent features: Features intelligent power saving to prolong battery life and a gate chime to alert users when a gate is opened or closed.
