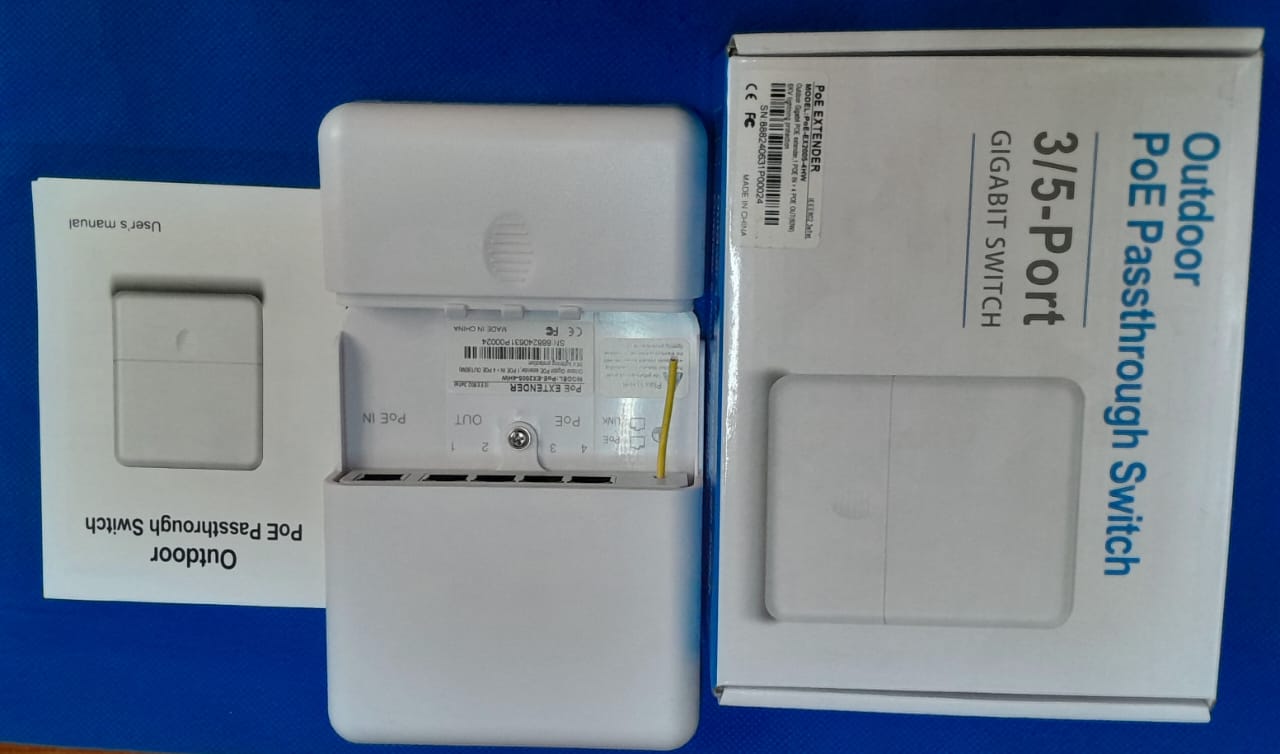

3/5 port gigabit switch outdoor poe extender
KSh 7,500
3/5 port gigabit switch outdoor poe extender is a compact, unmanaged network device designed to extend the range of standard Ethernet and Power over Ethernet (PoE) beyond the typical 100-meter limit, making it suitable for outdoor and complex indoor environments
In Stock
Compare
Description
3/5 port gigabit switch outdoor poe extender It typically features one or more Gigabit Ethernet ports for data and power transmission, allowing users to connect multiple devices like IP cameras and access points over longer distances without requiring separate power outlets.
3/5 port gigabit switch outdoor poe extender key features:
– Supports data transfer rates up to 1000Mbps (1 Gigabit) for high-bandwidth applications.
-Transmits both power and data over a single Ethernet cable, extending the standard 100m range by an additional 100m or more in cascaded setups.
– Features a rugged, weatherproof (e.g., IP65 or IP67) metal housing with robust protection against environmental factors like dust, water, and extreme temperatures.
– Requires no separate power supply to operate, as it receives power from the PoE source and then “passes it through” to other devices.
-Unmanaged, requiring no configuration or software setup; devices are automatically detected and powered.
-Includes built-in surge protection (e.g., 6KV) to safeguard connected devices from power surges and lightning strikes.
-Can be pole-mounted or wall-mounted for flexible deployment in various locations.
-Complies with IEEE 802.3af, 802.3at, and often the newer 802.3bt standards, ensuring compatibility with a wide range of PoE devices.
How it Works:
-
Connection:
A network cable carrying power and data from a PoE switch or injector is connected to the extender’s input port.
-
Extension:
The extender boosts and then re-transmits the PoE signal, extending both power and data over another 100 meters of Ethernet cable.
-
Device Connection:
Additional PoE-powered devices, such as IP cameras or wireless access points, are connected to the extender’s output ports and receive both data and power.
-
Cascading:Multiple extenders can be “cascaded” together to extend the network range even further, up to 1,300 feet or more depending on the model and cable quality
