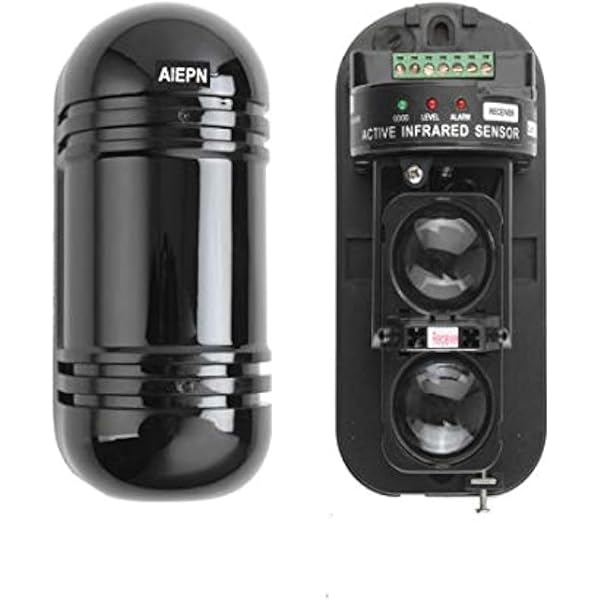

ABT 60 beam sensor
KSh 6,500
ABT 60 beam sensor is a dual-beam photoelectric infrared detector designed for perimeter security, capable of detecting intrusions over a distance of 60 metres outdoors and up to 180 metres indoors. It operates as a transmitter and receiver pair that triggers an alarm when both infrared beams are interrupted simultaneously
In Stock
Compare
Description
ABT 60 beam sensor is a 60-meter dual-beam active infrared perimeter detector designed for outdoor/indoor security, featuring two simultaneous beams to reduce false alarms. It offers a 60m outdoor range, 180m indoor range, IP65 waterproof rating, and adjustable response times, making it ideal for protecting perimeters, fences, and entrances.
Key Features and Specifications:
- Detection Type: Double-beam infrared photoelectric detector.
- Range: 60 meters outdoor (approx. 180m indoor).
- Structure: Dual beam detection requires both to be interrupted, minimizing false alarms from birds or leaves.
- Adjustment: 180° horizontal (+/- 90°) and 20° vertical (+/- 10°) lens adjustment for precise alignment.
- Response Time: Adjustable (50-700ms) to suit different installation environments.
- Alarm Output: NO/NC relay outputs.
- Voltage: 12-24V DC/AC.
- Weather Resistance: Rated for outdoor use, often with IP65, IP55, or IP66, and equipped with anti-fog/dew shielding.
- Frequency: Often features selectable beam frequencies to prevent interference when stacking multiple units.
- Indicators: LED indicators for signal level and alarm status.
Applications of ABT 60 beam sensor
The ABT-60 is ideal for protecting:
- Residential Perimeters: Driveways, gardens, and fences.
- Commercial/Industrial Sites: Warehouses, parking lots, and factory boundaries.
- Critical Infrastructure: Monitoring utility zones and transit hubs
