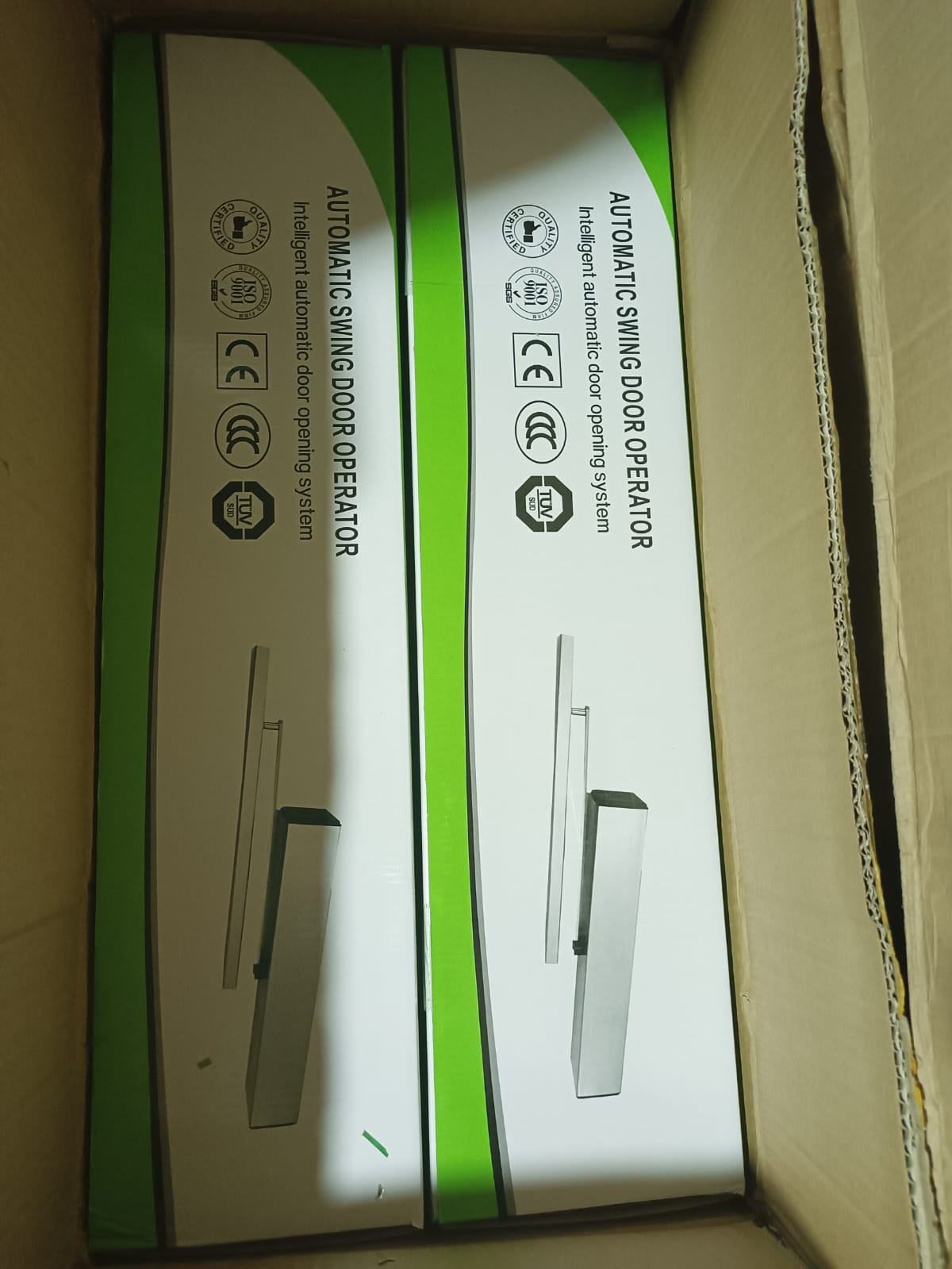

automatic swing door operator
KSh 44,999
automatic swing door operator use electricity to power a motor inside the unit to open the doors. The auto opener is often referred to as an auto operator or low energy operator.
The www.affrosonicsystems.com swing door operator surface mounted and overhead concealed swing door operators offers advanced technology that ensures smooth, gentle operation across a wide range of conditions. The heavy-duty electro-mechanical operator is suitable for use on large heavy doors, yet adaptable enough to be used in low energy applications.
In Stock
Compare
Description
automatic swing door operator is the ideal low energy operator for applications that need reliable, durable entrances with the strength to withstand continuous usage. The electro-mechanical surface mounted operator is extremely quiet and flexible with unique features not found in other low energy operators, including stack pressure compensation, lock circuit retry, electronic dampening, power assist, obstruction control and low power consumption.
With adjustable open and closing speeds, the www.affrosonicsystems.com swing door operator can be configured to meet precise requirements, eliminating wear on the motor and safeguarding the life of the product. The www.affrosonicsystems.com swing door operator also offers safety features to match its excellent performance, helping foot traffic flow smoothly and efficiently.
Key features often include:
- Adjustable Speeds: Users can customize opening and closing speeds to meet safety requirements and traffic patterns.
- Hold Open Time: The duration the door remains open can be adjusted.
- Safety Sensors: Integrated safety beams or pressure sensors detect obstructions in the door’s path, stopping or reversing movement to prevent injury or damage.
- Manual Override: Most units allow for manual operation if power is lost or in emergency situations.
- Integration: Designed to work seamlessly with various access control systems, including keypad entry, magnetic locks, and building management systems
Automatic swing door operator Specifications
Specifications vary depending on whether the operator is a low-energy (slower, safer for general public use) or full-energy (faster, high-traffic commercial use) model.
| Characteristic | Typical Specification Range |
|---|---|
| Power Supply | 100V-240VAC, 50/60Hz (Standard Mains Power) |
| Operating Voltage | Typically 24VDC for the motor |
| Door Type | Single or double swing doors (left/right hand opening) |
| Max. Door Weight | 80 kg to 300 kg+ (depending on model) |
| Max. Door Width | 700 mm to 1400 mm |
| Opening Angle | Adjustable, up to 110° – 180° |
| Opening/Closing Speed | Adjustable (e.g., 3-10 seconds for full open/close) |
| Safety Features | Obstacle detection, safety beam interface, reverse-on-obstruction |
| Activation Options | Motion sensor, touchless sensor, push button, remote control, access control inputs |
| Certifications | CE, FCC, ANSI/BHMA A156.19 (for low-energy operators) |
| Environment | Indoor use standard; some models IP-rated for outdoor/wet areas |
For specific product details, authorized suppliers such as https://www.affrosonicsystems.com/ often provide detailed data sheets and installation guide
