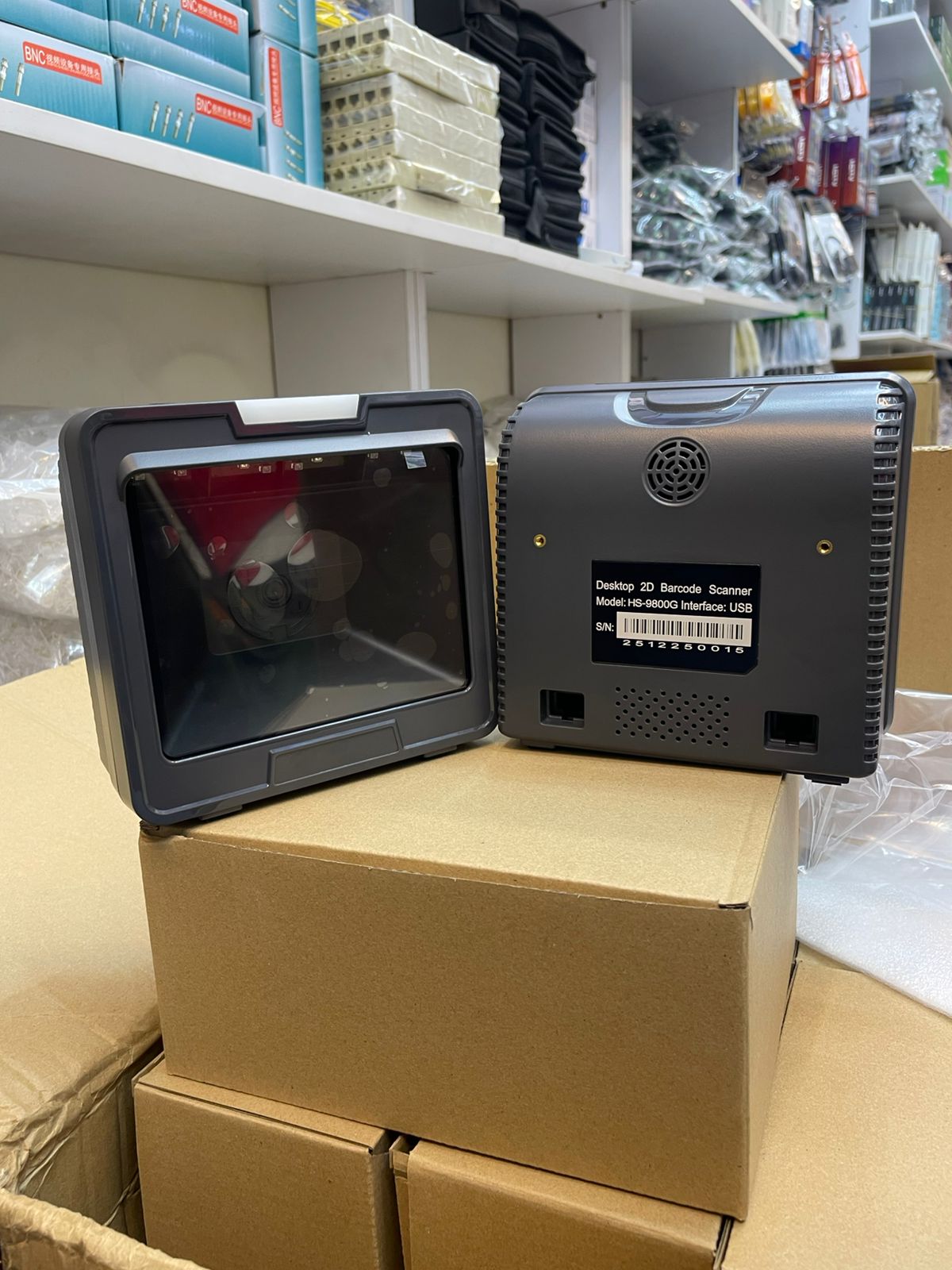

HS-9800G Desktop 2D Barcode Scanner

Description

HS-9800G Desktop 2D Barcode Scanner is a high-performance omnidirectional imaging platform designed for hands-free scanning in busy retail, pharmacy, and logistics environments. It utilizes advanced CMOS technology to quickly decode 1D and 2D barcodes from both paper labels and mobile device screens.

HS-9800G Desktop 2D Barcode Scanner Key Features

• 360° Omnidirectional Scanning: Employs an array of lenses to capture barcodes from any angle, eliminating the need to precisely align items.
• Mobile Screen Compatibility: Optimized to read digital codes for mobile payments (e.g., Alipay, WeChat Pay), e-tickets, and digital coupons directly from smartphone displays.
• Superior CMOS Imaging: Features a high-resolution sensor capable of reading high-density, blurred, or damaged barcodes, as well as challenging formats like PDF417 on driver’s licenses.
• Adjustable Scanning Head: The device often features a tilting head (up to 30 degrees) to optimize the scanning angle for different counter heights.
• Plug-and-Play Setup: Drive-free installation via USB ensures seamless integration with Windows, Mac, Linux, and Android systems.
• Automatic Sensing: Automatically switches from standby to active scanning mode when a barcode is detected in its field of view, saving power and increasing efficiency

Technical Specifications

• Imaging Sensor: Planar CMOS sensor with resolutions up to 1280 x 800 pixels.
• Scanning Speed: High-speed performance reaching up to 500 scans per second.
• Decoding Capability:
  • 1D: UPC/EAN, Code 128, Code 39, Codabar, GS1 DataBar, and more.
  • 2D: QR Code, Data Matrix, PDF417, Aztec, and HanXin.
• Precision: Minimum resolution of 4 mil.
• Durability: IP52 environmental sealing rating and shock resistance against drops from up to 1.2 meters onto concrete.
• Interface Options: Standard USB-HID/USB-COM; RS232 is often customizable.
• Physical Dimensions: Approximately 150.4mm x 143.9mm x 80.9mm with a weight of roughly 348g to 500g
