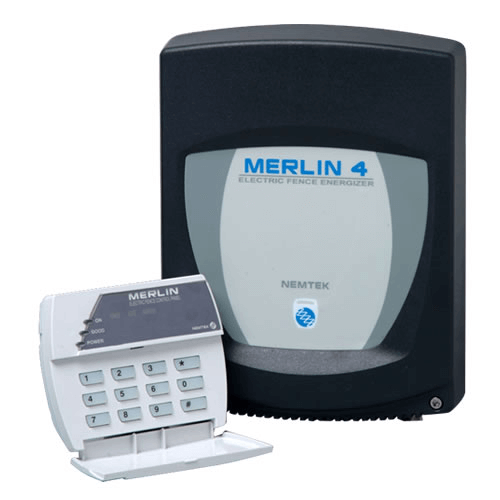

merlin 4i electric fence energizer
KSh 26,999
merlin 4i electric fence energizer with keypad Features:
• 3.7 Joule output energy (single zone)
• Robust and flexible design for home and commercial security
• Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
• Connectable to armed response radio or GSM module
• Lightning and power surge protection
Available at www.affrosonicsystems.com
In Stock
Compare
Description
merlin 4i electric fence energizer with keypad 4 joule the energizer can be installed near the fence and the keypad can be located where it is most convenient for the user. This allows the user to control the energizer remotely, with up to four keypads (EE-MKP).
Features :
• 3.7 Joule output energy (single zone)
• Robust and flexible design for home and commercial security
• Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
• Connectable to armed response radio or GSM module
• Lightning and power surge protection
• Intelligent power saving to extend battery life
• Powered by 230V mains and includes built-in battery for back-up power
• Built-in gate alarm input to monitor if the gate is open or closed
• Gate chime available to alert that the gate has been opened or closed
• The fence voltage outputs can be adjusted using the keypad
• The siren and gate outputs can be bypassed using the keypad
merlin 4i electric fence energizer Specifications
Enclosure size: L285 x W212 x D120
Weight excluding battery (7AH): 3.1kg
Weight including battery (7AH): 5.3kg
IP rating: IPx4
Operating temperatures: -10°C to 50°C
Operating humidity: < 80% non-condensing
Electrical supply voltage: 240V
Typical power consumption (normal operating conditions): 18VA
Standby time (fully charged battery): 24hrs
Energy output 500 Ohms load: 3.7 Joule
Description
- Robust design: Built for both home and commercial security applications.
- Remote control: Comes with a keypad that allows for remote control and programming from a convenient location.
- System integration: Can be connected to an armed response radio or a GSM module for external monitoring.
- Protection: Includes built-in lightning and power surge protection.
- Intelligent features: Features intelligent power saving to prolong battery life and a gate chime to alert users when a gate is opened or closed.
Specifications
| Specification | Detail |
|---|---|
| Energy Output | 3.7 Joules (at 500 Ohm load) |
| Open Circuit Voltage | 8,000V |
| Power Supply | 240V AC mains |
| Battery Backup | Integrated 7Ah battery for standby |
| Standby Time | Up to 24 hours with a fully charged battery |
| Power Consumption | 18VA (typical operating conditions) |
| Enclosure Size | 285mm (L) x 212mm (W) x 120mm (D) |
| Weight | 3.1kg (excluding battery) |
| IP Rating | IPx4 (suitable for sheltered outdoor installation) |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | < 80% non-condensing |
