tone tracer

Description

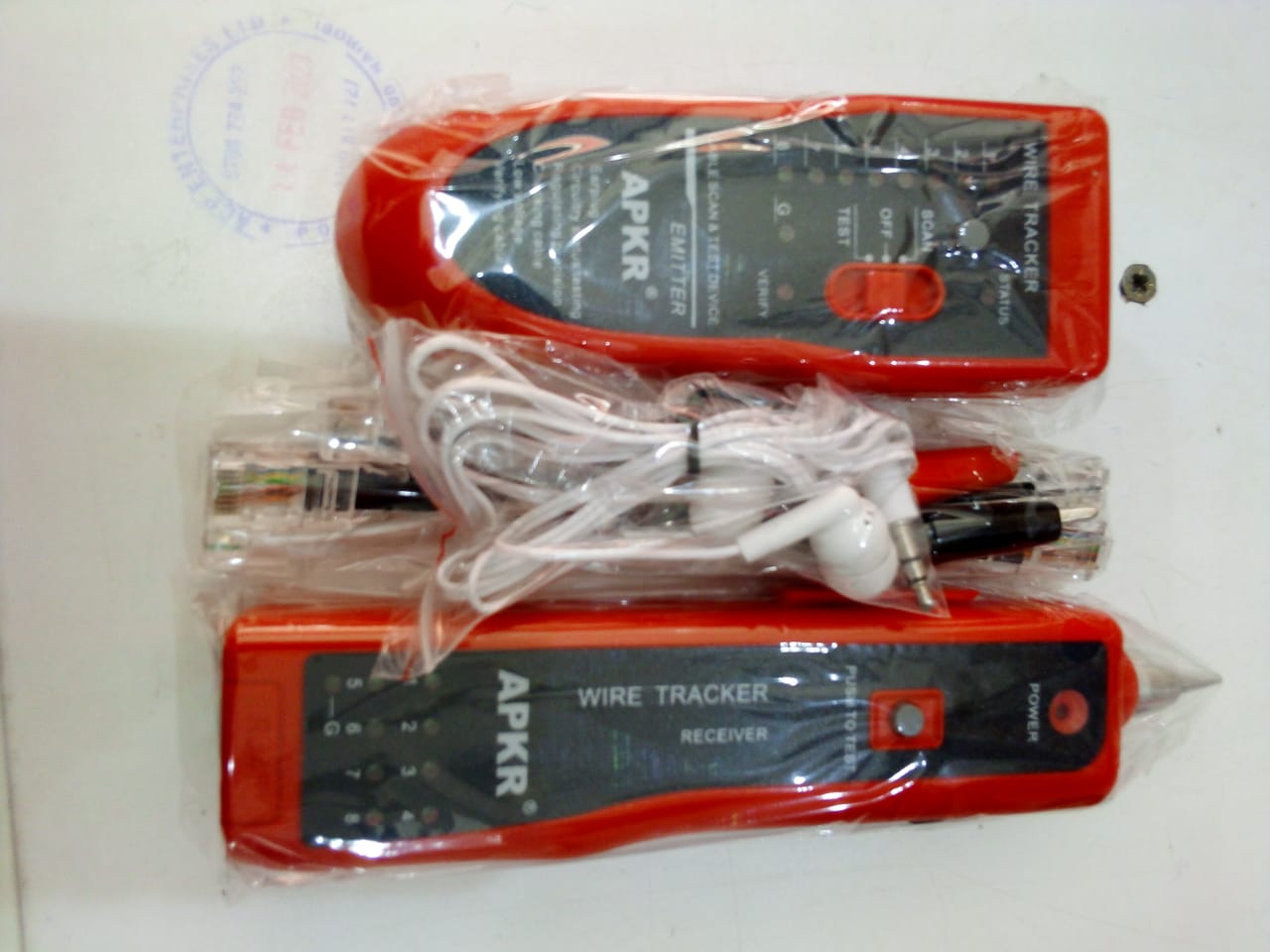

Tone tracer

Nwire Tracker, RJ11 RJ45 Line Finder Cable Tester for Network LAN Ethernet Cable Collation, Phone Telephone Line Test Wire Tracer Cable Tracker. The signal leads are 500mm long and terminated with alligator clips.

The modular leads is 300mm long and terminated a 4 pin RJ11 plug. Both units operate from a 9 volt batteries (Sold Separately). Supplied in a handy protective zip up vinyl case.

What does a tone tester do?

A toner probe is used to trace network cables between two different locations. For example, if you have 50 cables going from an office to a wiring closet, you sometimes need to identify both ends of the same cable

tone tracer Key Features:

Two-Part Functionality

A tone generator (toner) sends an audible signal down the connected wire, which is then detected by the inductive amplifier probe.

Audible and Visual Indication

Versatile Connectivity

The generator typically includes alligator clips for connecting to unterminated wires and RJ11/RJ45 plugs for direct connection to telephone and network jacks.

Multiple Tones

Some models offer multiple or “warble” tones, which helps in isolating specific wire pairs within a complex bundle.

Continuity and Polarity Testing

Many tone generators also include functions to test for continuity, short circuits, open lines, and the polarity of telephone lines.

Safety and Durability

Features such as an insulated probe tip prevent accidental shorts, and the tools are often built with wear-resistant ABS plastic shells to withstand rugged use.
